Changing Materials Multiple Interior Images
5.0
2 reviewsDescription
06.30 Adding Anytest too keep it like original pic

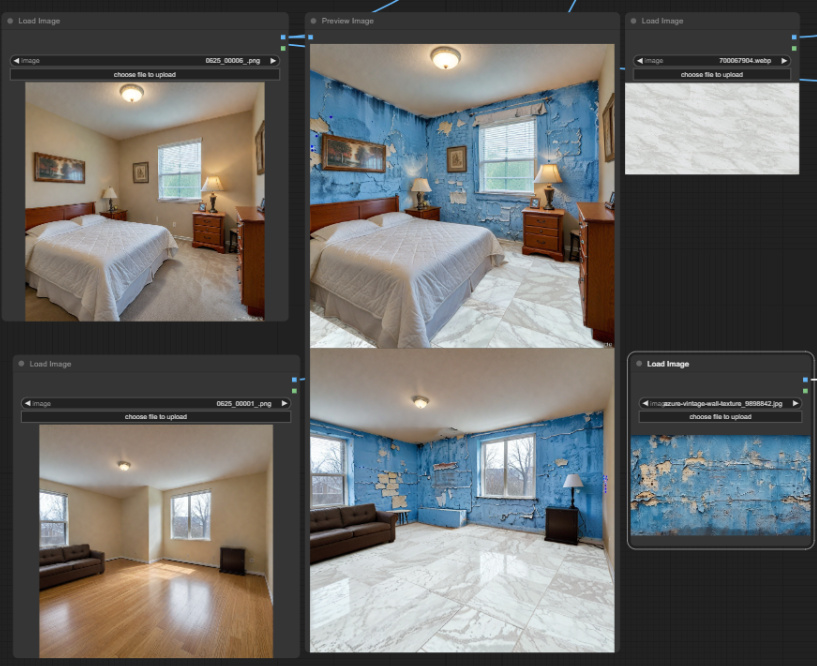

Workflow for Changing Wall and Floor Materials to Make Multiple Interior Images Consistent for Reference:
Upload interior images, with the default being two images.
Adding more image nodes to increase the number or using a folder for batch processing. Additionally, The two material images, with the default being floor and wall materials. If you only need to change one material, you can use only the upper group and skip the lower group.
Adjusting the masking content and the material change items by modifying the green SegmentAnythingUltra node content. For example, if the floor prompt is "ground" and you need to change the ceiling, adjust it to "roof" and also change the corresponding prompt word.
The Threshold parameter will affect the masking range. The judgment area for the floor and ceiling is mainly influenced by this parameter. Lowering the parameter will increase the range of material change but may result in over-painting.
For example, in the provided dining room example, the wall extends to the ceiling. If the desired result cannot be achieved, consider batch adjustments first, then adjust the parameters one by one.
==
变更墙壁与地板材质的工作流,使多张室内图一致以做为参考。
需上传室内图片,默认为两张,可自己增加图片节点以提升张数或使用文件夹批次,及两张材质图片,默认为地板及墙面,若仅要变更一种材质,可只使用上半部的群组,并跳过下半部群组。
可调整屏蔽内容及变更材质项目,调整绿色的SegmentAnythingUltra节点内容,如地板的prompt是ground,需变更天花板则调整为roof,相对应的提示词也要调整。
Threshold参数会影响范围,地板、天花板的判断区域主要是受到此参数影响,降低参数会提高材质变更的范围,但也可能变成画太多,如范例中的餐厅,墙面就画到天花板,若无法得到想要的结果,可考虑批次调整后,再逐张调整参数。
Discussion
(No comments yet)
Loading...
Reviews
No reviews yet
Versions (2)
- latest (2 years ago)
- v20240626-021854

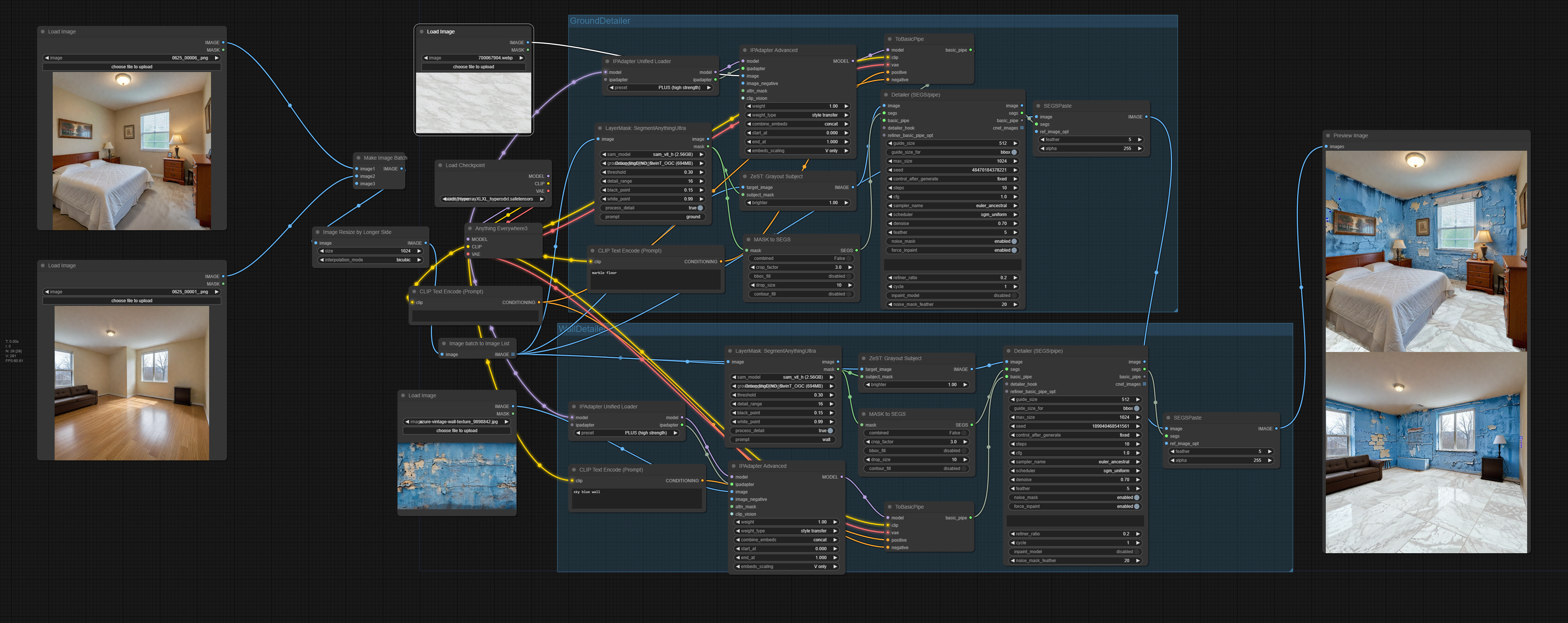

Node Details
Primitive Nodes (1)
Anything Everywhere3 (1)
Custom Nodes (31)
ComfyUI
- CheckpointLoaderSimple (1)
- LoadImage (4)
- PreviewImage (1)
- CLIPTextEncode (3)
- ControlNetLoader (1)
- ToBasicPipe (2)
- SEGSPaste (2)
- DetailerForEachPipe (2)
- ImpactMakeImageBatch (1)
- MaskToSEGS (2)
- ImpactImageBatchToImageList (1)
- LayerMask: SegmentAnythingUltra (2)
- IPAdapterUnifiedLoader (2)
- IPAdapterAdvanced (2)
- ACN_AdvancedControlNetApply (2)
- ZeST: Grayout Subject (2)
- JWImageResizeByLongerSide (1)
Model Details
Checkpoints (1)
aiartistHyperrayXLXL_hypersdxl.safetensors
LoRAs (0)
